ROUTER WIFI7 BE3600 5PGIGABIT 4ANTE NNE FISSE 6DBI

Un router WiFi 7 dual-band con una velocità complessiva di 3,6 Gbps e cinque porte Gigabit, adatto a scenari di gioco e intrattenimento.

Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Le antenne ad alto guadagno con funzioni attive avanzate e la tecnologia Beamforming passiva offrono segnali Wi-Fi più forti e mirati verso i dispositivi client, offrendo velocità più elevate e maggiore stabilità in tutta la casa o l'ufficio.

The upgrade OFDMA in Wi-Fi 7 features Multi-RU that provides smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interferences in other channels.

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

Aggiorna la tua rete con facilità. Un intuitivo la procedura guidata di configurazione ti guida nella configurazione della tua nuova rete.

Crea profili utente, imposta orari online, e regolamentare i contenuti online per i tuoi cari.

Consente il lavoro da casa e l'accesso remoto sicuro con il supporto dei protocolli VPN più diffusi.

Caratterizza l'app Cudy e Cudy Cloud per facilitare la gestione della tua rete.

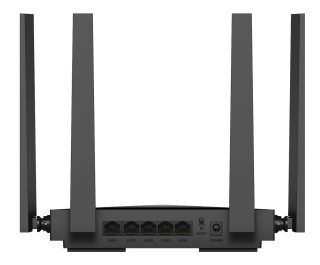

Versione del modello WR3600 1.0

CPU
Chipset BCM6764

CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage
Flash/ROM 128 MB (1 Gbit) NAND

DDR/RAM 512 MB (4 Gbit) DDR3L

Wireless
5 GHz Wi-Fi Speed 2882 Mbps

2.4 GHz Wi-Fi Speed 688 Mbps

5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas 4× Fixed

5 GHz Antenna Gain Max 5.5dBi

2.4 GHz Antenna Gain Max 5.4dBi

5 GHz: 2× External

2.4 GHz: 2× External

Beamforming True

Range Performance
Max: 220 m (722 ft)

Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance
Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces
Gigabit RJ45 Ports 5

Ethernet Notes 1× WAN port, the rest are LAN ports

Power

Internet

WAN

LAN

2.4 GHz Wi-Fi

5 GHz Wi-Fi

WPS Button

Reset Button

Power Input DC Jack

Power
Power Methods DC

DC 12V 1A

Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W) 9W

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CE

Desktop

Wall-mount

183.3×109×38 mm

7.22×4.29×1.5 inches

175 mm

6.89 inches

Product Weight 333.5 g (11.76 oz.)

WR3600

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information
Retail Package Weight ZH: 725.0 g (25.57 oz.)

Retail Package Dimension 330×256×60 mm (12.99×10.08×2.36 inches)

Units per Carton 10

Carton Dimension 52.8×31.7×34.7 cm (20.79×12.48×13.66 inches)

Carton Gross Weight ZH: 8.1 kg (17.86 lbs)
Carton Net Weight ZH: 7.3 kg (16.09 lbs)
